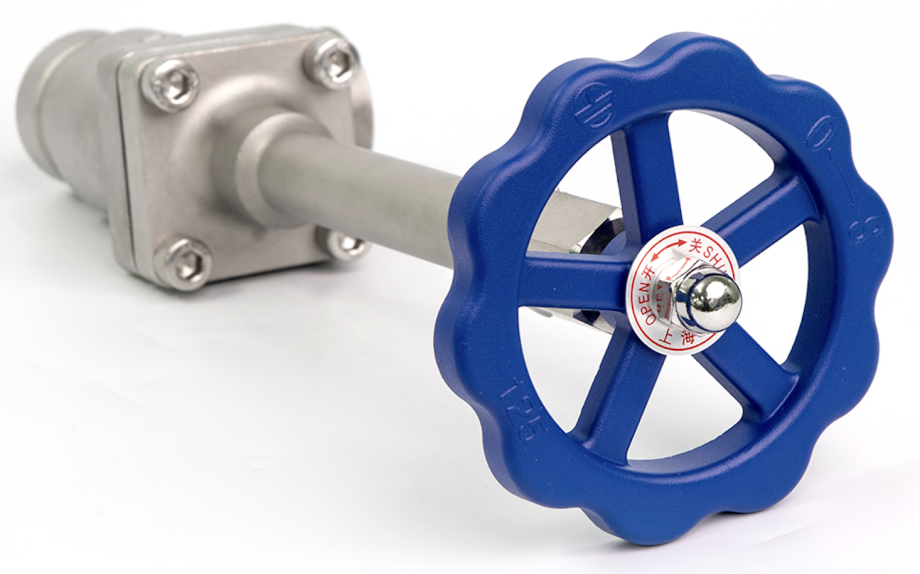

CRYOGENIC GLOBE VALVE PN40
Parameters PN：4.0 MPa DN: Ø32-∅50 Design Temperature：-196℃ ~+80℃ Media: LNG, LO2, LN2, LAr, CO2 Connection: Socket Weld
| Materials | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1 | Body | CF8 | 6 | Hexagon Screw | S30408 | 10 | Hand Wheel | Y102 |
| 2 | Disc Sealing | PCTFE | 7 | Stem | S30408 | 11 | Hexagon Nut | S30408 |
| 3 | Disc | S30408 | 8 | V ring | PTFE | 12 | Connecting Nut | S30408 |
| 4 | Gasket | RPTFE | 9 | Gland Nut | S30408 | 13 | Connecting Pipe | S30408 |
| 5 | Bonnet | S30408 | ||||||

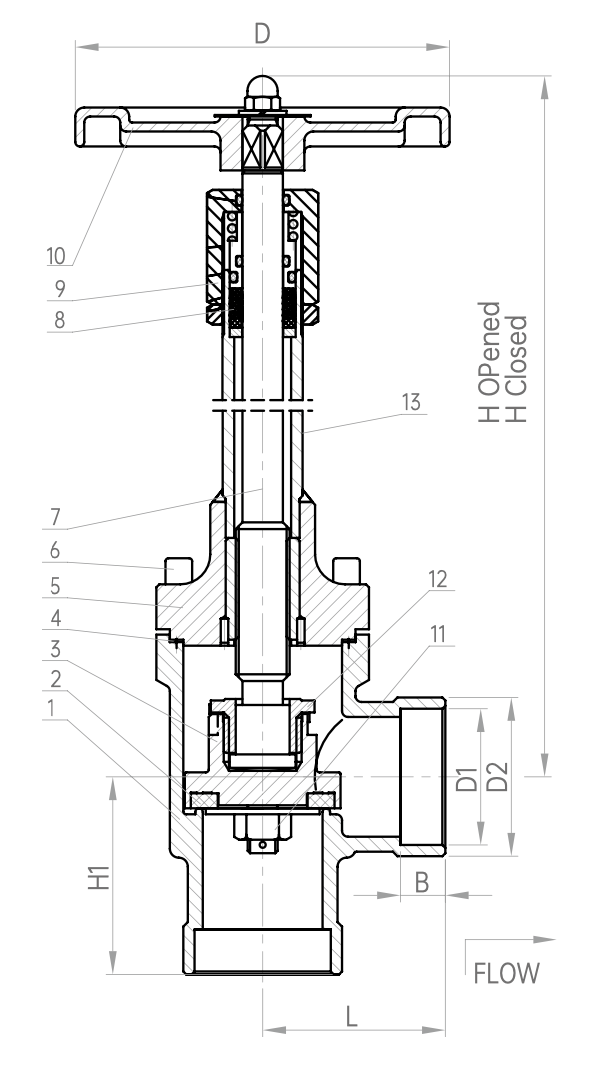

| Model No | Specifications & Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| H Opened | H Closed | H1 | L | D | D1 | D2 | B | |
| DJZ-32 | 342 | 325 | 81 | 76 | Ø125 | Ø38.5 | Ø52 | 8 |
| DJZ-40 | 342 | 325 | 66 | 61 | Ø125 | Ø45.5 | Ø53 | 15 |
| DJ-50J | 378.5 | 345.5 | 70 | 70 | Ø140 | Ø57.5 | Ø72 | 15 |
