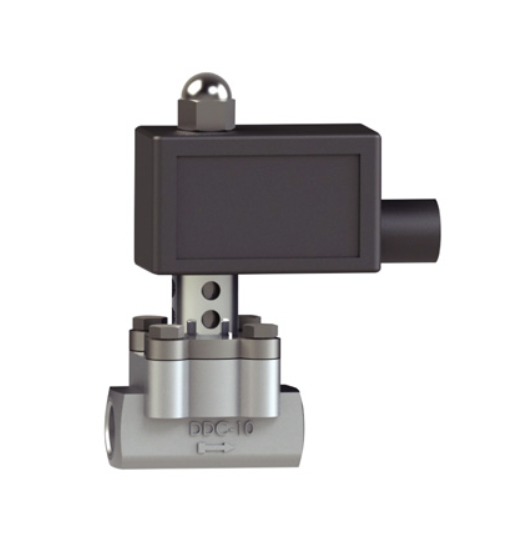

KRİYOJENİK SOLENOID VALF
| Özellikler |
|---|
| PN：4.0 MPa |
| DN: Ø10 |
| Dizayn Sıcaklığı：-196℃ ~+85℃ |
| Akışkan: LNG, LO2, LN2, LAr, CO2 |
Bu ürün TS tarafından sertifikalandırılmıştır.
Standartlar: GB/T 25925
Standartlar: GB/T 25925

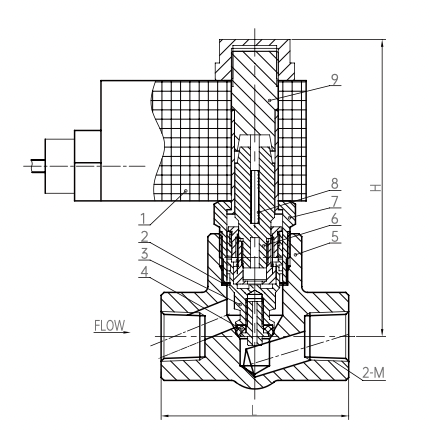

| Malzemeler | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1 | Coil | 4 | Yatak Contası | PTFE | 7 | Boğaz Somunu | S30408 | |
| 2 | Yatak Contası | T2 | 5 | Gövde | HPb59-1 | 8 | Yay | S30210 |
| 3 | Disk | JL-31B | 6 | Moving Core | JL-31B | 9 | Static Core | JL-31B |
| Mode of Action | Piloted Type | Opening Pressure Difference | 0~3.5 MPa |
|---|---|---|---|
| Control Mode | Normally Kapalı | DN | Ø10mm |
| Operation Mode | 2-position 2-way | Design Temp | -196℃～ +85℃ |
| Operation Voltage | DC 18V~DC 32V | Akışkan | LNG |
| Insulation Resistance | ≥10MΩ | Material of Valve Gövde | HPb59-1 |
| Lifetime | ≥50,000 times | Material of Valve Disk | HPb59-1 |
| Protection Level | IP65 | Material of Yay | S30210 |
| Power of Coil | 18W | Material of Sealing | PTFE |
| Model No. | Özellikler & Ölçüler (mm) | |||
|---|---|---|---|---|
| H | L | D0 | M | |
| DDC-10B.001 | 101 | 63.5 | Ø10 | NPT 3/8 |
| DDC-10B.002 | 101 | 63.5 | Ø10 | NPT 3/8 |
| DDC-10B.005 | ||||
